Product Name

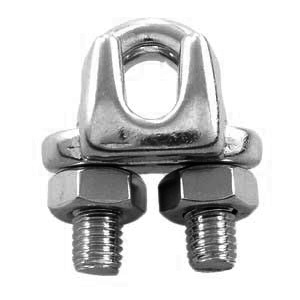

Wire rope clip US type

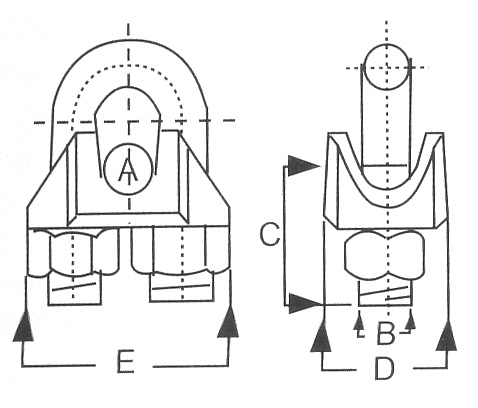

| A(inch) | B(inch) | C(inch) | D(inch) | E(inch) |
| 1/8" | 0.19" | 0.55" | 0.55" | 0.87" |
| 3/16" | 0.25" | 0.63" | 0.59" | 1.02" |
| 1/4" | 0.31" | 0.79" | 0.73" | 1.26" |
| 5/16" | 0.31" | 0.87" | 0.79" | 1.38" |
| 3/8" | 0.38" | 1.06" | 0.87" | 1.59" |
| 7/16" | 0.38" | 1.18" | 0.91" | 1.69" |
| 1/2" | 0.44" | 1.38" | 1.02" | 1.93" |
| 9/16" | 0.50" | 1.57" | 1.04" | 2.07" |
| 5/8" | 0.50" | 1.57" | 1.12" | 2.26" |
| 3/4" | 0.56" | 1.65" | 1.26" | 2.40" |
| 7/8" | 0.63" | 1.81" | 1.46" | 2.80" |
| 1" | 0.63" | 2.17" | 1.65" | 3.05" |
